Honeywell ControLinks™ Replacement
MEET CLR.
YOUR OUT-OF-THE-BOX REPLACEMENT FOR HONEYWELL CONTROLINKS™.
A GTH product utilizing the Honeywell SLATE™ Combustion Management System.
As of 2020, the Honeywell ControLinks™ system is obsolete and replacement parts are no longer offered. The GTH Engineering & Design Group has the clear solution – the new CLR panel. This system is offered as an easy to install control panel or back panel kit, allowing you to easily budget hardware and installation costs. It comes standard with a full-color touchscreen HMI, and is pre-programmed and quality tested for your ControLinks™ application. Since CLR requires minimal field wiring and includes all necessary cross-over wiring diagrams, your system is up and running in hours instead of days!

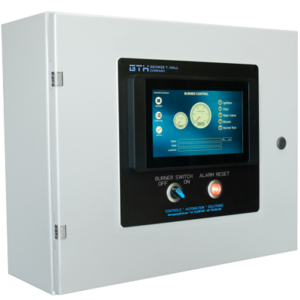

CLR CONTROL PANEL
SLATE™ system control panel with pre-programmed logic including:
- Fuel air ratio control
- Valve proving
- Burner Management system
- Burner ON/OFF switch
- Alarm indication
- 10” color touchscreen display

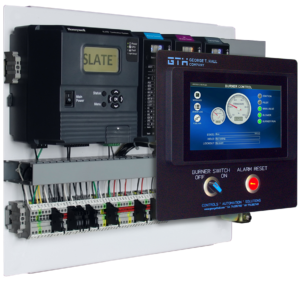

CLR RETROFIT KIT
SLATE™ system installed on a back panel for mounting in existing panel with pre-programmed logic including:
- Fuel air ratio control
- Valve proving
- Burner Management system
- Burner ON/OFF switch
- Alarm indication
10” color touchscreen display and pilot devices mounted and prewired to panel mount bezel for easy single hole installation. Included 2m quick connect cable eliminates door to back panel wiring.
| SPECIFICATIONS Combustion Management System – SLATE™ Specifications pdf Actuators – SLATE 150 in/lb, NEMA 1 standard Flame Sensor – Honeywell Minipeeper® Ultraviolet Flame Detector Electrical Ratings – 120Vac, 60Hz, 7.3 A Environmental Rating – NEMA 1 enclosure Approvals – UL508A certified |
HARDWARE OPTIONS NEMA 4 industrial actuator Variable frequency drives (VFDs) Self-checking flame sensor
SOFTWARE OPTIONS |
LOOKING FOR A CUSTOM SOLUTION?
We can design and build a new control panel or retrofit your existing panel with a system customized for your specifications. Contact the GTH location near you to learn more!
